You just bought a new cartridge filled with your favorite oil, but when you try to screw it onto your battery, it doesn’t fit—or worse, it fits but doesn’t fire. This frustration is more common than you might think. While the vaping world has made great strides toward standardization, not every piece of hardware plays nicely with every accessory.
Many users assume that a vape cartridge battery is a universal tool, like a USB port for a computer. Unfortunately, the reality is a bit more nuanced. Compatibility matters not just for convenience, but for safety and performance. Using the wrong battery with a specific cartridge can lead to burnt oil, leaks, or even permanent damage to your device.
Understanding the mechanics behind your cart battery and how it connects to the cartridge is essential for a smooth experience. Whether you are a seasoned vaper or just picking up your first pen, knowing what to look for will save you time, money, and a lot of disappointment.
What Is a Vape Cartridge Battery?
At its core, a vape cartridge battery—often shortened to “cart battery“—is the power source for your vaping setup. It is the bottom half of the device that provides the energy needed to heat the heating element (coil) inside the cartridge. When the coil heats up, it vaporizes the oil or concentrate, allowing you to inhale it.
Cartridge batteries come in various shapes and sizes. Some look like traditional pens (hence the name “vape pen”), while others are boxy, discreet, or designed to resemble key fobs. Despite the variety in aesthetics, their function remains the same: to deliver a specific amount of electrical current to the cartridge.
The most common type you will encounter is the 510 thread battery. This standard has dominated the market for years, but it isn’t the only option out there. Understanding how your battery connects to the cartridge is the first step in troubleshooting compatibility issues.
What Does “510 Thread” Mean in Vape Devices?
If you spend any time browsing vape shops or online forums, you will constantly see the term “510 thread.” But what does it actually mean?
The term “510” refers to the threading connection used to join the battery and the tank (or cartridge). Technically, it originally described a connection with 10 threads at 0.5 mm per thread. Today, it simply refers to the industry-standard connection size that allows different brands of cartridges and batteries to work together.
The 510 vape battery became the universal standard because it offered versatility. Before this standardization, many companies used proprietary connections, forcing customers to buy batteries and cartridges from the same manufacturer. The shift to 510 threading opened up the market, allowing vapers to mix and match their favorite 510 cartridge with their preferred battery hardware.
However, while a vast majority of the market uses this standard, proprietary systems still exist. Some brands, like PAX Era or Stiiizy, use “pods” that snap into place magnetically rather than screwing in. These are closed systems and will absolutely not work with a standard 510 thread battery.
Do All Vape Cartridges Fit All Vape Cartridge Batteries?
The short answer is: Not always.
While it is true that most cartridges on the market today are 510-threaded and will physically screw into most 510 batteries, physical fit does not guarantee functional compatibility.
Compatibility depends on several factors beyond just the threading. The width of the cartridge, the airflow design, the resistance of the coil, and the voltage output of the battery for vape cartridge all play a role. For example, a very wide cartridge might not fit into a “conceal” style battery where the cart sits inside a recessed chamber. Similarly, a high-resistance cartridge might not produce any vapor if paired with a low-powered battery.
So, while you have a high probability of success if you stick to standard 510 gear, you cannot blindly assume that every vape cartridge battery compatibility scenario will work out perfectly.
Types of Vape Cartridge Batteries and Their Compatibility
To better understand which devices work together, it helps to categorize the different types of batteries available on the market.

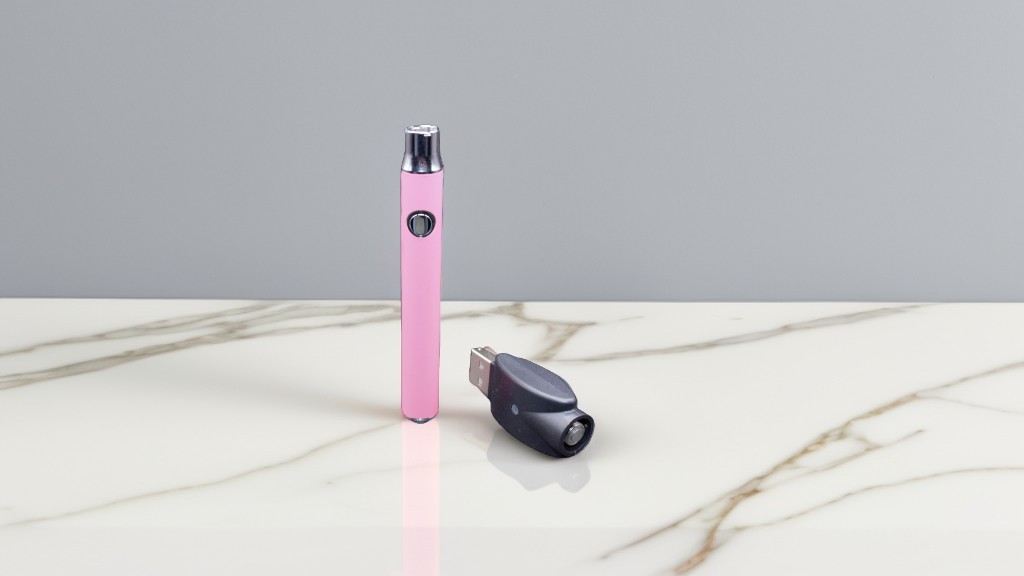

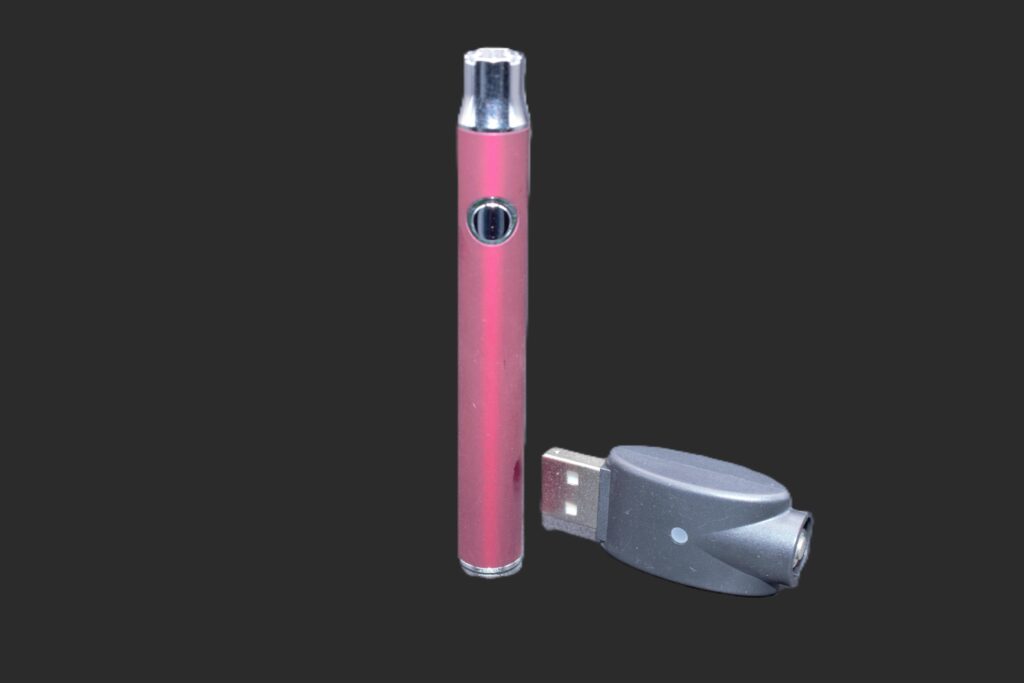

Standard 510 Battery
This is the “pen style” battery most people are familiar with. It is usually a slim, cylindrical tube with a button (or an auto-draw sensor). Because there is no recessed chamber, the width of the cartridge rarely matters—if it has 510 threading, it will screw on. These are the most versatile options for general use.
Variable Voltage 510 Vape Battery
A step up from the standard pen, a variable voltage battery allows you to adjust the power output. This is crucial for compatibility. Some oils are thicker and require higher voltage to vaporize, while thinner oils or delicate terpenes require lower voltage to avoid burning. A 510 vape battery with variable voltage gives you the control to match the power to the specific cartridge you are using.
Magnetic Adapter Batteries
These batteries are often small and boxy. Instead of screwing the cartridge directly into the device, you screw a small magnetic ring onto the bottom of your 510 cartridge, and then drop it into the battery. While these are convenient, they can be finicky. If the magnetic adapter doesn’t make a solid connection with the battery pin, it won’t fire. Furthermore, these batteries often have recessed chambers, meaning wider cartridges simply won’t fit inside the hole.
Disposable Cartridge Batteries
These are all-in-one units where the battery and cartridge are integrated. Once the oil is gone, you throw the whole device away. Compatibility isn’t a factor here because you cannot remove or swap the cartridge. While convenient, they are less eco-friendly and offer zero customization.
Factors That Affect Cartridge and Battery Fit
If you have a cart battery and a cartridge that don’t seem to be working together, one of the following factors is likely the culprit.
Thread Type
This is the most obvious barrier. If you have a proprietary pod (like a JUUL pod or a specialized medical pod) and a standard 510 battery, they simply won’t connect. Always check the packaging to ensure both devices are “510 threaded.”
Cartridge Size and Shape
As mentioned earlier, the physical dimensions of the cartridge matter. “Conceal” batteries hide the cartridge inside the body of the device for discretion and protection. However, if your cartridge is too wide (common with 1-gram or 2-gram tanks), it physically won’t slide into the opening. Standard pen-style batteries eliminate this issue since the cartridge sits on top.
Voltage and Power Settings
Electrical compatibility is just as important as physical fit.
- Too Low: If your battery provides 2.0 volts but your cartridge has a high-resistance coil requiring 3.5 volts, you will get wispy vapor or none at all.
- Too High: If you blast a delicate ceramic coil with maximum voltage, you will burn the wick instantly, ruining the flavor of the entire cartridge.
Having a battery with adjustable settings is the best way to navigate this.
Airflow Design
There are two main ways cartridges get airflow: through the bottom pin or through holes on the side of the threads. Some batteries act as a seal when the cartridge is screwed in tight, blocking the bottom airflow holes. If you screw your cart in and it feels like trying to suck a milkshake through a coffee stirrer, your battery design might be blocking the intake vents. Loosening the cartridge slightly (just a quarter turn) can sometimes fix this.
Best 510 Thread Battery Options for Vape Cartridges
If you want to avoid headaches, investing in high-quality hardware is the way to go. Here is what you should look for when hunting for the best 510 thread battery.
Features to Look for in the Best 510 Thread Battery
- Adjustable Voltage: Look for a device that lets you cycle between at least three voltage settings (e.g., 2.8V, 3.2V, 3.8V). This ensures you can handle different oil viscosities.
- Preheat Mode: Thick oils can clog cartridges, especially in cold weather. A preheat function warms the oil gently for 10-15 seconds to clear clogs without burning the coil.
- USB-C Charging: Micro-USB is outdated. USB-C charges faster and is more durable.
- Battery Capacity (mAh): A higher mAh rating means the battery lasts longer between charges. Look for something above 350mAh for casual use, or 650mAh+ for heavy use.
Who Should Buy a Premium Cart Battery?
You don’t need to break the bank, but spending a little more than the bare minimum pays off.
- Flavor Chasers: If you buy live resin or rosin carts, you need a 510 thread battery best suited for low-temperature vaping to preserve the terpenes.
- Heavy Users: If you vape daily, a cheap gas station battery will die quickly. A robust battery ensures reliability.
- Heavy Oil Users: If you use thick distillates, you need the power reliability that premium batteries provide.
Common Problems When Vape Cartridges Don’t Fit Batteries
Even with compatible equipment, things can go wrong. Here is how to troubleshoot common issues.
Cartridge Not Screwing In
If the cartridge won’t thread, stop immediately. Do not force it. You might be cross-threading it, which will strip the threads on the battery. Check the threads for debris, pocket lint, or sticky oil residue. Clean both the battery and cartridge threads with a cotton swab dipped in isopropyl alcohol. If it still doesn’t screw in, verify you aren’t trying to mix a non-510 cart with a 510 battery.
Battery Not Hitting
The light turns on, but no vapor comes out. This is usually a connection pin issue. The “center pin” on the bottom of the cartridge needs to touch the center plate of the battery. sometimes, over-tightening the cart pushes the battery pin down too far.
- The Fix: Take a paperclip and gently pry the center pin of the battery up by a millimeter. Then, screw the cartridge on gently—don’t over-tighten!
Cartridge Leaking or Overheating
If your cartridge is leaking into the battery connection, it might be getting too hot. This usually happens when the voltage is set too high for the coil type. Dial down the power. Leaking can also damage the battery permanently, so be sure to clean any spillages immediately with alcohol.
How to Know If Your Vape Cartridge Will Fit Your Battery
Before you buy, run through this quick checklist to ensure your battery for vape cartridge is the right match:
- Check the Packaging: Does the cartridge box say “510 Thread”? Does your battery manual say the same?
- Check the Width: If you have a box-style battery, check the max diameter specs (usually measured in millimeters, e.g., “fits carts up to 11mm”). Compare this to your cartridge size.
- Match the Power: If you have a specific resistance cartridge (like sub-ohm), make sure your battery can handle it.
- Avoid Off-Brands: Extremely cheap, unbranded cartridges often have poor manufacturing tolerances. Their threads might be messy or their pins too short, causing connection failures even with good batteries.
Tips for Using Vape Cartridge Batteries Safely
Safety should always be your priority. These batteries are small, but they contain lithium-ion cells that store a lot of energy.
- Don’t Overcharge: Don’t leave your battery charging overnight. Once the light turns green (or shuts off), unplug it.
- Use the Correct Voltage: Start low and go slow. High voltage can burn oil and potentially release harmful byproducts.
- Store Upright: Keep your device standing up when not in use. This prevents the oil from leaking into the airway or the battery connection.
- Keep Threads Clean: Regular maintenance ensures a good electrical connection. A dirty connection increases resistance, making the battery work harder and heat up more.
Frequently Asked Questions About Vape Cartridge Batteries
How to Use a Vape Cartridge Battery?
Using a standard battery is simple. First, ensure it is charged. Screw the cartridge onto the top of the battery—finger tight is perfect; do not over-tighten.
- For button-activated batteries: Press the button 5 times quickly to turn it on. Press and hold the button while inhaling.
- For draw-activated batteries: Simply inhale through the mouthpiece, and the device will fire automatically.
Do All Vape Cartridges Fit All Batteries?
No. While the 510 cartridge is the industry standard, there are exceptions. Proprietary pods (like PAX or Stiiizy) only fit their specific batteries. Additionally, some 510 cartridges are too wide physically to fit into “conceal” style 510 batteries. Always check thread type and physical dimensions.
How to Use a Vape Battery and Cartridge Together?
- Attach: Screw the cartridge onto the battery.
- Power On: Click the button 5 times (if applicable).
- Adjust Voltage: Click the button 3 times (usually) to cycle through heat settings. Green is usually low, Blue is medium, Red is high.
- Preheat (Optional): Click twice to run a preheat cycle if the oil is cold.
- Inhale: Hold the button and draw.
Final Thoughts — Choosing the Right Vape Cartridge Battery
Navigating the world of vape hardware doesn’t have to be complicated. While it’s a myth that every cartridge fits every battery, the industry has standardized enough that a good best 510 battery will cover 90% of your needs.
Always double-check your thread types, be mindful of physical size constraints, and ensure your voltage settings align with your oil. By taking these small steps, you ensure that every puff is flavorful, potent, and safe.
Investing in the best 510 thread battery you can afford is usually the smartest move. It gives you the versatility to handle different brands and the reliability to vape without constant troubleshooting.
